TITAN Cargo XL
The Ventis TITAN Cargo XL series is designed for large-scale coating applications such as trucks, buses, rail vehicles, boats, and oversized industrial structures. These systems are engineered to deliver very high airflow capacities starting from 55,000 m³/h and above, ensuring stable process conditions, effective overspray control, and a safe working environment even in extreme-duty applications.

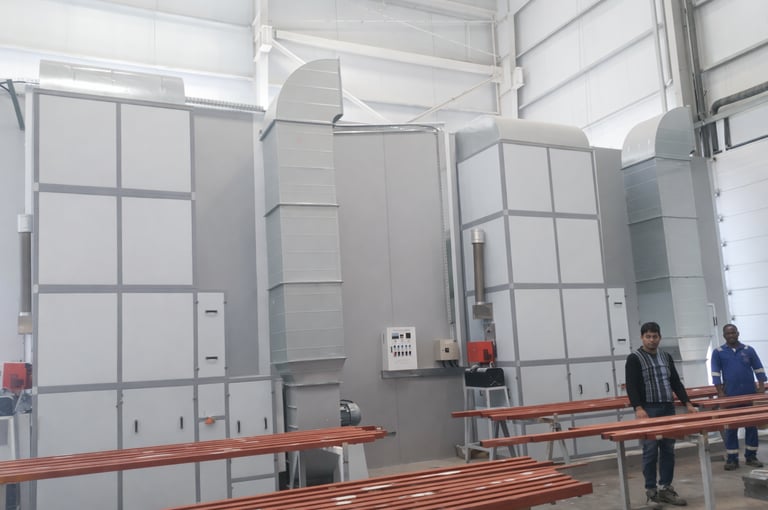

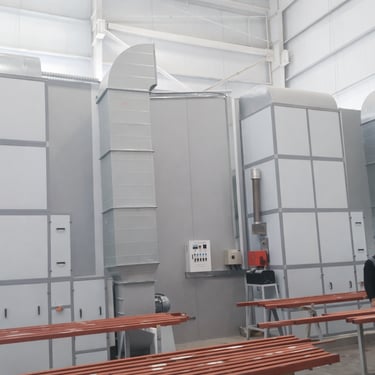

TITAN Cargo XL booths utilize a full downdraft airflow configuration, widely recognized as the most effective solution for controlling overspray and airborne contamination in large enclosures. Fresh, filtered air is supplied through a fully filtered ceiling plenum and flows evenly downward across the entire cabin volume toward the central floor exhaust plenum, providing uniform air movement and consistent coating quality over large surfaces.
With the exception of the TITAN 550, Ventis TITAN Cargo XL systems are custom-engineered and manufactured to order, based on specific customer requirements, vehicle dimensions, production volume, and site conditions. Each project is individually designed, including booth size, airflow capacity, filtration stages, access solutions, and structural configuration, ensuring optimal performance for the intended application.

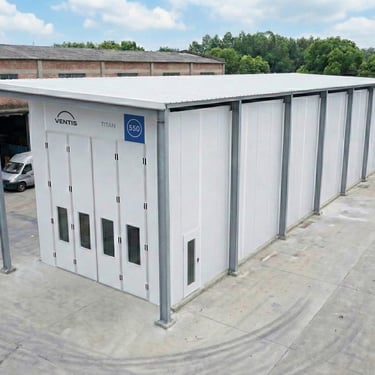

The Ventis TITAN 550 is the standard reference model within the Cargo XL range, featuring internal dimensions of 15,000 mm length, 6,000 mm width, and 6,000 mm height. This configuration provides a proven baseline solution for large commercial vehicles while maintaining the flexibility to scale airflow performance and system options as required.
Ventis TITAN Cargo XL spray booths represent industrial-grade, purpose-built solutions for customers who require maximum airflow performance, reliable process control, and fully customized engineering for large-format coating operations.
Heavy-Duty Spray Booths for Large-Scale Applications
airflow capacities starting from 55,000 m³/h
multiple length, width, and height configurations
Booth highlights
Configuration & Custom Engineering

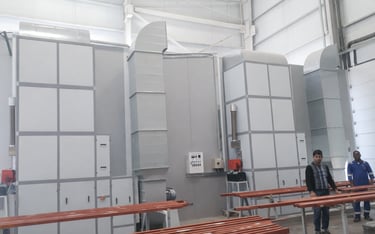

Ventis TITAN Cargo XL spray booths are designed as fully configurable, project-based systems, engineered to order according to customer requirements. Configuration options include booth dimensions, airflow capacity (starting from 55,000 m³/h and above), airflow layout (full downdraft with central or sectional exhaust), filtration stages, door and access systems, lighting layouts, and control architecture. Structural adaptations such as booth length extensions, reinforced frameworks, service platforms, and integration with existing production lines are available, ensuring each TITAN system is precisely matched to the application, facility layout, and production volume.
Ventis TITAN 550 – Technical Data Sheet
Application:
Heavy-duty spray booth for trucks, buses, rail vehicles, boats, and oversized industrial components
Airflow Type:
Full Downdraft Airflow
Internal Dimensions:
Length: 15,000 mm
Width: 6,000 mm
Height: 6,000 mm
Airflow Capacity:
From 55,000 m³/h (scalable depending on configuration)
Construction:
Heavy-duty insulated sandwich panels
Insulation options: EPS / PIR foam / mineral wool
Reinforced steel structure
Corrosion-resistant galvanized steel roof
Ventilation System:
High-capacity direct-drive (DDF) fans
Digital control via VFD (variable frequency drives)
Optimized for continuous-duty industrial operation
Filtration System:
Fully filtered ceiling intake plenum with diffusion media
Central or sectional floor exhaust plenum
High-efficiency exhaust filtration for overspray capture
Lighting:
High-intensity industrial LED lighting
Optimized layout for large-scale surface inspection and coating
Access & Doors:
Large-format industrial vehicle access doors
Configurable: folding, sliding, or sectional
Integrated technical access doors for service and inspection
Customization:
Dimensions, airflow, filtration, doors, lighting, and controls configurable per project
Integration with drying zones, prep stations, or production lines available
Heavy Duty Construction:

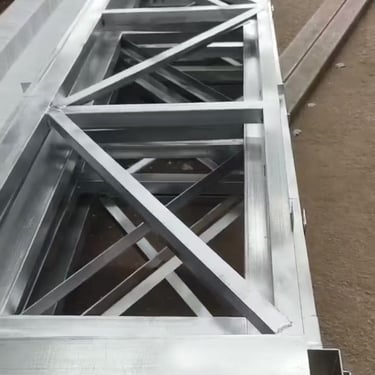

Ventis TITAN Cargo XL spray booths are engineered for large-scale applications using heavy-duty insulated sandwich panels with an EPS core or alternative insulation options, combined with a corrosion-resistant galvanized steel roof and reinforced structural framework. The rigid, industrial-grade construction ensures long-term durability, thermal stability, and airtightness required for very large enclosures, supporting stable airflow and consistent process conditions during high-volume coating operations.
Fans & Motors:

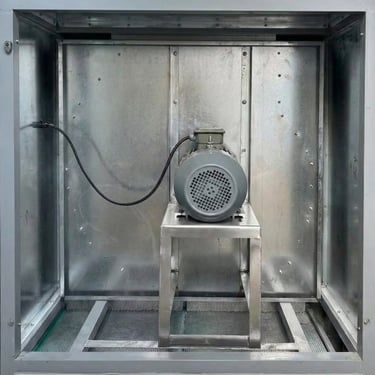

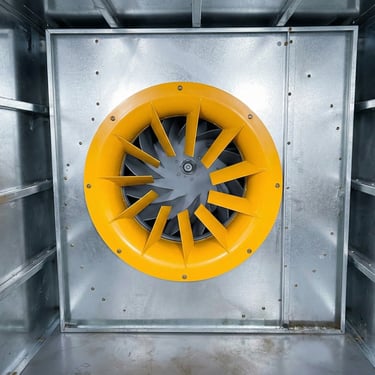

Airflow is generated by high-capacity direct-drive (DDF) fans, designed for very high airflow rates starting from 55,000 m³/h and above. Fan systems are digitally controlled via variable frequency drives (VFDs), allowing precise airflow regulation across large cabin volumes while optimizing energy consumption. Compared to belt-driven systems, direct-drive technology provides higher efficiency, lower noise levels, and reduced maintenance, even in continuous-duty industrial environments.
Filtration system:
Clean air is supplied through a fully filtered ceiling plenum with diffusion media, ensuring uniform, low-turbulence airflow across the entire booth volume, even for oversized vehicles and structures. Exhaust air is drawn through a central or sectional floor exhaust plenum, equipped with high-efficiency exhaust filtration, effectively capturing overspray and airborne contaminants while maintaining a clean, controlled working environment compliant with industrial standards.
Doors:

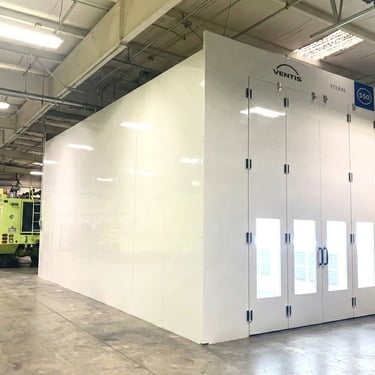

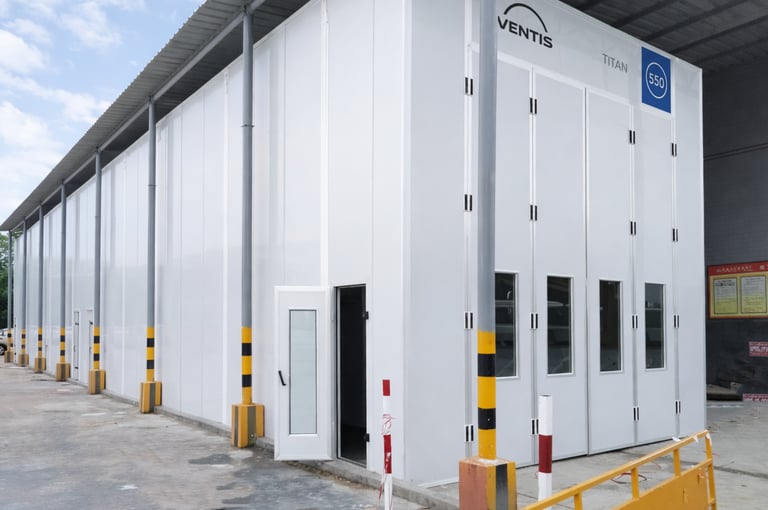

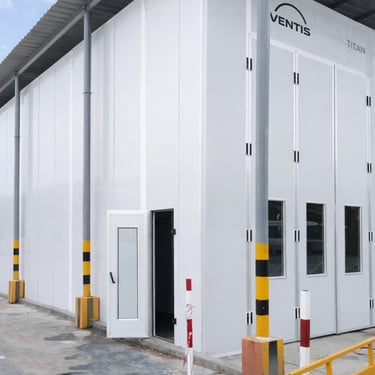

Ventis TITAN Cargo XL booths are equipped with large-format industrial access doors, engineered to accommodate trucks, buses, rail vehicles, boats, and oversized components. Door configurations are customized per project and may include multi-leaf folding doors, sliding industrial gates, or sectional doors, with optional glazed panels for visibility. Dedicated technical access doors are integrated for safe servicing, inspection, and maintenance without interrupting production workflow.
